Continuous locking

The way all doors should Lock.

Scroll
Full length

Head to sill.

TYTO system runs the entire edge of the door. A true integrated entry system.

Performance

A tighter seal.

42% less air leakage when locked, in independent lab testing. Canadian A3 air rating on tested system.

Wide choice of handlesets

Your customers pick the hardware.

Wide choice of trim including Schlage, Baldwin, Rocky Mountain. Supports several popular electronic locks.

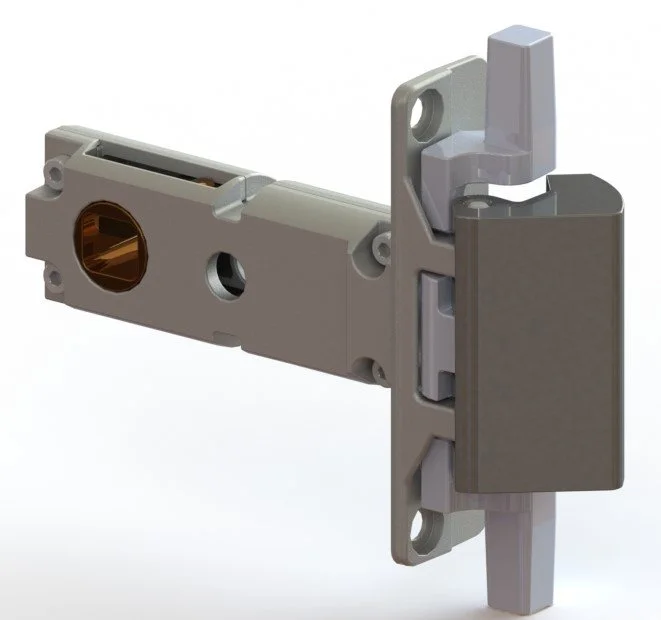

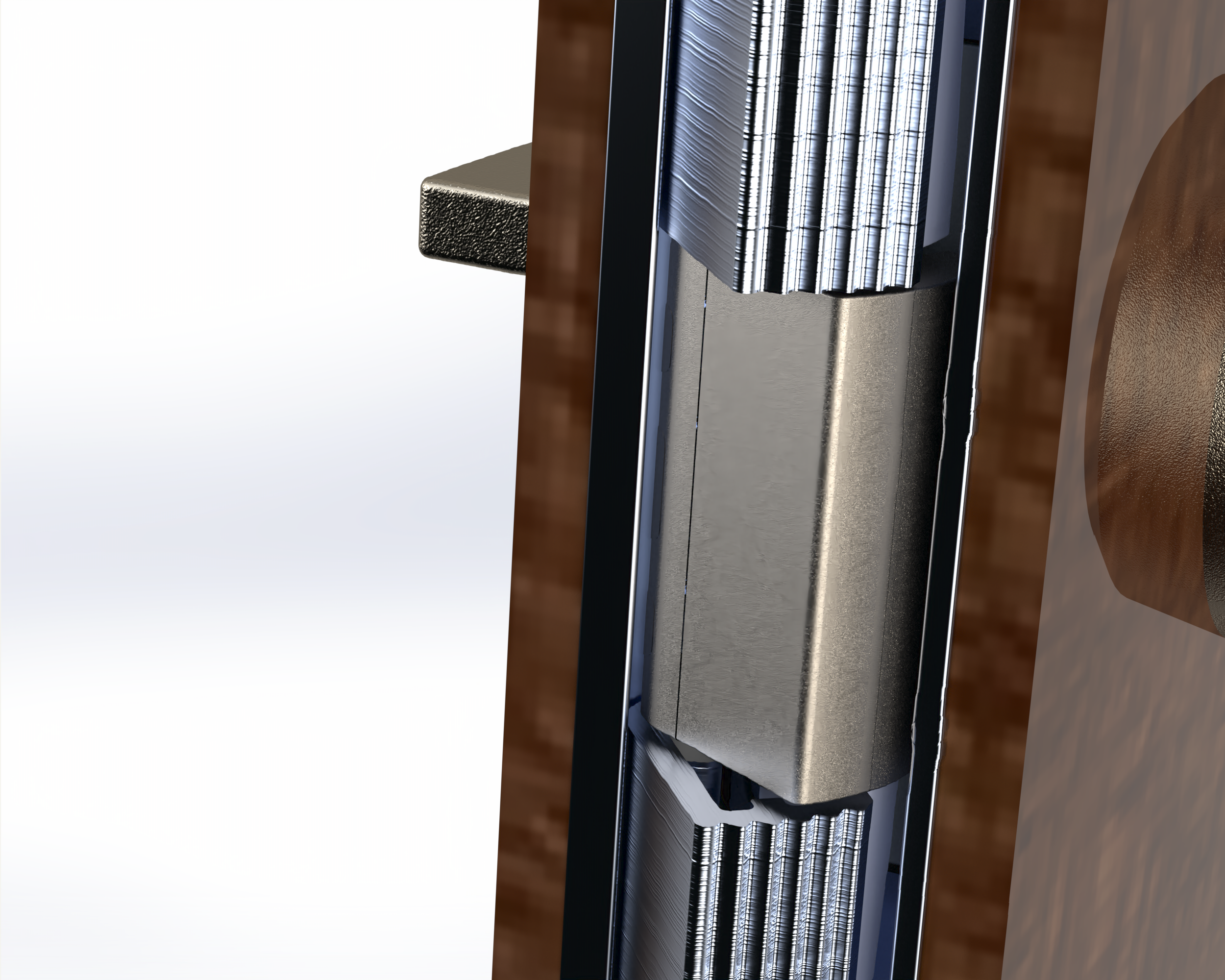

High-performance latch

Quality feel, simple to use.

A dual-spring polished steel latch that makes any handleset and entry door feel premium. Works like a deadbolt, not a multipoint.

Only TYTO

The original continuous locking system.

Beautifully designed door edge. Anodized 6063 aluminum in clear or black.

How it holds

Held everywhere.

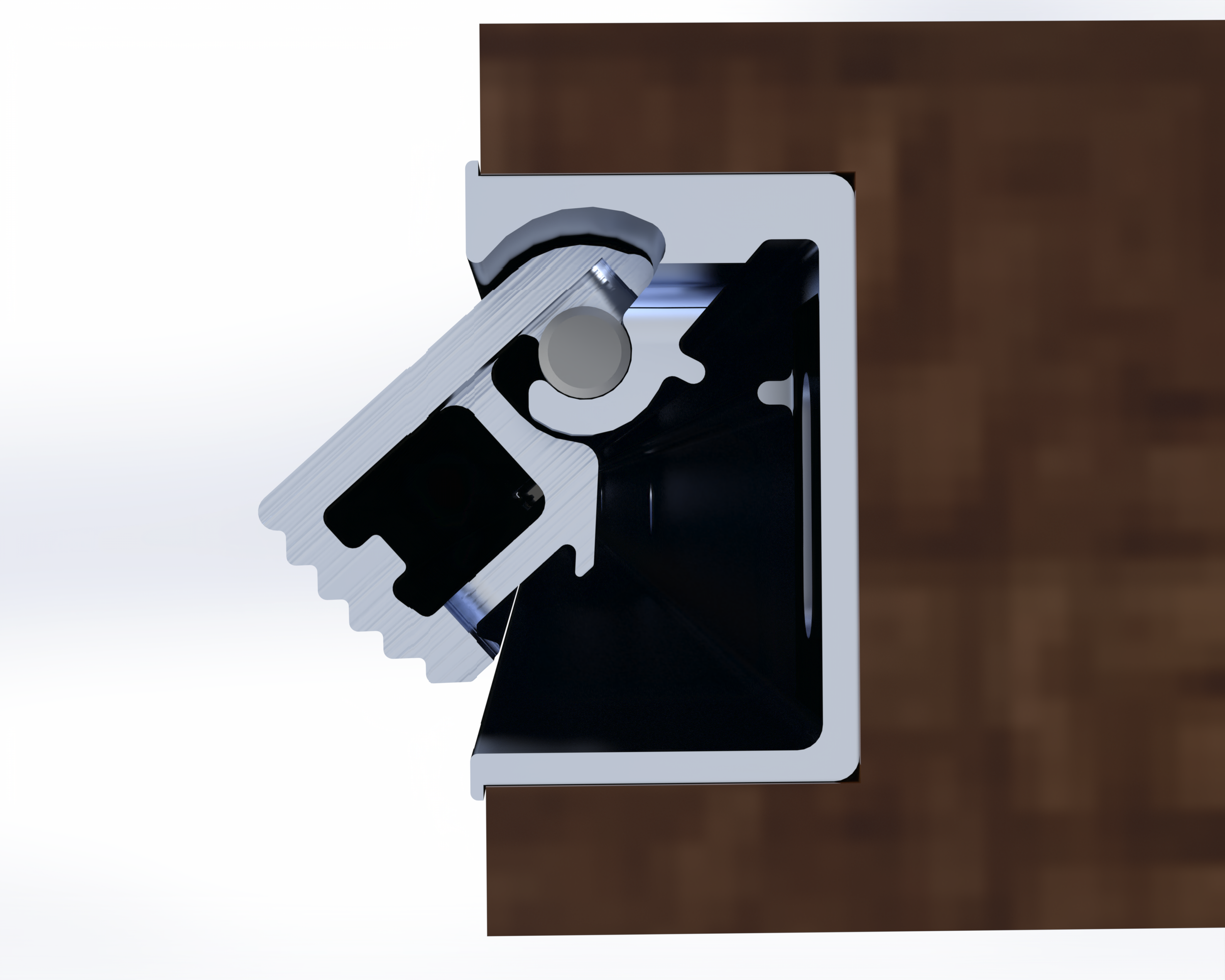

The wedge engages the jamb along the full height of the door. Independent lab: DP 100+, against DP 70 for a steel deadbolt on the same door.

Security

Three times the forced-entry requirement.

Exceeds ASTM F476 Grade 40, the top forced-entry grade: 500 ft-lbf against the 148 required, in independent lab testing.

Strength

Built to stay straight.

The door edge is reinforced with a rigid aluminum box, and the aluminum jamb channel is designed to resist warping. Put it on every 8′ door.

For door brands

One more operation than a deadbolt.

Standard dual bore, plus one CNC pass down the slab edge and one on the jamb. Less machining and labor than a multipoint.

Fits your line

Standard slabs. Standard backset.

Fits 6/8 and 8/0 slabs in wood, fiberglass or steel with a machinable edge.

Request a sample lock
A full-height door with a black anodized TYTO lock running the length of its edge, from sill to head
The technology

A continuous lock. Not a multipoint.

A multipoint locks a door at three points, and all three have to line up with the frame. TYTO hangs like a deadbolt, with no extra drilling on site.

  • An entry system with integrated lock. TYTO was designed as a system, joining the frame, slab and lock into a single system.
  • Rigid box on edge and jamb. Designed to keep the door aligned and resist warp.
Illustration comparing a multipoint lock, which holds the door edge at three points, with TYTO, which engages the full height of the edge. Under load, gaps open between the multipoint's points while TYTO spreads the force along the entire height.

Performance

Numbers behind the feeling.

Homeowners feel it when the door closes. Door makers can see it in the lab. Certify your own systems with TYTO.

DP 125+

Internal testing, current designIndependent lab: DP 100+ on an earlier version, stopped before failure. A steel deadbolt on the same door: DP 70.

42%

Less air infiltration, independent labSimply by locking. Canadian A3, the top air rating.

3×

Forced-entry requirement, independent lab500 ft-lbf against 148 for ASTM F476 force test.

1 Million+

Cycles, documented internal testingIndependent lab: 240,000 cycles, surpassing the ANSI/BHMA A156.2 Grade 3 cycle test.

Independent results are from an accredited lab testing earlier TYTO versions on 6′8″ inswing fiberglass doors (ASTM E330, E283, F476; ANSI/BHMA A156.2). Internal results are from our own documented testing of the current design. Performance varies with door and frame.

The TYTO lock edge in clear anodized aluminum on a dark wood door The TYTO lock edge in black anodized aluminum on a dark wood door
Design

Great hardware makes a great door.

The entry door is the first impression of a home. TYTO is designed to be seen, felt and heard. Homeowners know quality when they feel it.

  1. A clean edgeMinimal visible screws. Black or clear anodized. TYTO matches any door style.
  2. Materials you can feelHardware has been cost-reduced for years. TYTO is anodized aluminum and polished steel, the kind of quality homeowners notice and pay for.
  3. The sound of the closeWe tuned how the door sounds when it shuts, so it feels like a well-engineered system.

Your handleset.

An open system. Customers choose a standard deadbolt and latch, or an electronic lock, in the brand, style and finish they want.

Satin nickel lever and deadbolt on a TYTO door
Satin nickel lever
Matte black handleset on a TYTO door
Matte black handleset
Electronic keypad lock on a TYTO door
Electronic keypad
SchlageBaldwinDefiantKwikset
TYTO pulled apart for install: the base, latch and drive interface out of the slab, with the bores and the edge channel visible on a see-through door
For door makers

Built for the pre-hang shop. Works the way you work.

TYTO fits the way pre-hang shops already work. Standard dual bore, then one CNC pass down the slab edge and one on the jamb.

  1. Standard boresLike any deadbolt and latch
  2. Two CNC passesOne down the slab edge, one on the jamb
  3. Familiar fasteningInstalls easily
We think we will integrate Tyto in less than half the time we spend dealing with our current multipoint. Door manufacturer
Full spec sheetDoor types, slabs, sizes, backset, finishes, handlesets
Door typeInswing entry doors
SlabWood, fiberglass and steel, with a machinable edge
FrameStandard frames
FitsStandard 80″ and 96″ slabs
Backset2-3/8″
FinishesBlack or clear anodized
HandlesetsStandard deadbolt and latch, or electronic: Schlage, Baldwin, Defiant, Kwikset and more

What the industry says

I can sell this all day long. All I need to do is show it. From the industry preview
I’ve seen many products in my time, and this just makes sense. Great sense.
Who we are

Named by a technician on a door plant floor.

“The way all doors should lock” wasn’t written by an agency. A technician in a door plant said it. Innovation in this industry is hard: it has to be durable, reliable, compatible and simple. We know we can do better.

Headquartered in Idaho. Come visit. We’re friendly.

  • Engineerswith a passion for quality, performance and usability.
  • Product designersobsessed with real problems, who love watching a customer’s eyes light up.
  • Operations expertswho know making it is part of designing it, and accept nothing less than consistent quality in every unit.
  • True door nerdsfascinated by where innovation, technology and the home meet.
